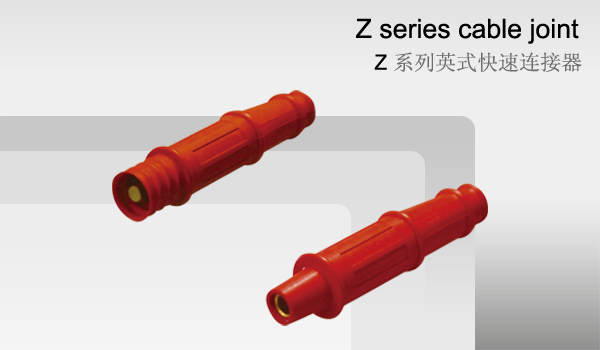

Z series welding cable coupling device-cable joint,our factory manufactures and assembles all kinds of cable coupling devices(cable connector,cable joint)at home and abroad.The device is applied in the connection between the output end of the welding machine and the cable.also between the cable and cable.It¨s easy,fast and safe.

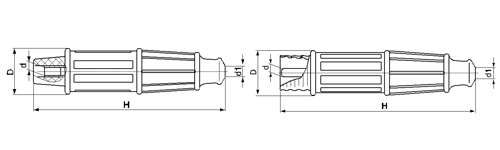

Type Rated current Cable Sc d D d1 H
Z6B 160A 16-25mm2 6 34 8 142
Z8B 200A 16-25mm2 8 35 9 156
Z10B 300A 35-50mm2 10 41 11 178.5
Z12B 400A 50-70mm2 12 44 14 195
Z12Ba 500A 70-95mm2 12 44 16 225
Type Rated current Cable Sc d D d1 H
Z6C 160A 16-25mm2 6 34 8 142
Z10C 300A 35-50mm2 10 40 11 178.5
Z12C 400A 50-70mm2 12 44 14 194
Z12Ca 400A 50-70mm2 12 44 16 210
