| CG2-150 Profilling Gas cutting machine is a kind of plate cutting by a variety of shape cutting machine,especially suitable for cutting the same shape,parts of the volume. |
| Cutting thickness |
5-100mm |
| Cutting speed |
50-750mm/min |
| Cut max.square |
500¡Á500mm |
| Cutting max.rectangular |
400¡Á900or450¡Á750mm |
| Max.cutting diameter circle |
600mm |
| Cutting the maximum length of |
1200mm |
| Cutting Accuracy |
Ellipticity ¡Ü1.5mm |
| Square |
¡À1mm/600mm |
| Input |
AC220V/50HZ |
| Dimensions |
1190¡Á335¡Á800mm |
| Weight |
56kg | |

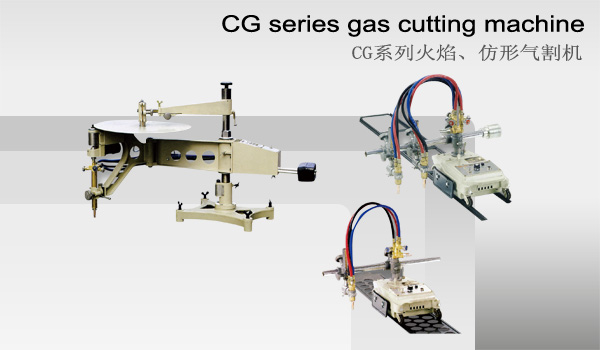

| CG series cutting body is made of High intensity Aluminum material,Speed control system using thyristor-controlled tentacles Speed,By the use of acetylene tube into the hose pipe assembly products can be loaded fast switching requirements,improve work effciency.Products applicable to shipbuilding,metallurgy,petroleum,metal structures,such as chemical plant piping.Long gas cutting machine can be customized. |
| Type |
Dimension mm |
Cutting Thickness mm |
Cutting Speed mm/min |
Cutting Diameter mm |
Input Voltage V/Hz |
Cutting Length mm |
Cutting Square Size mm |
Cutting Obolng Size mm |
Weight KG |
| CG1-30 |
440¡Á230¡Á240 |
8¡«100 |
50¡«750 |
¦Õ200-¦Õ2000 |
AC220/50 |
|
|
|
29.5 |
| CG1-100 |
440¡Á230¡Á240 |
8¡«100 |
50¡«750 |
¦Õ200-¦Õ2000 |
AC220/50 |
|
|
|
32.5 |
| CG2-150 |
1190¡Á335¡Á80 |
5¡«100 |
50¡«750 |
600 |
AC220/50 |
1200 |
500¡Á500 |
490¡Á900 or 450¡Á70 |
58.5 |
| CG2-150A |
1190¡Á335¡Á800 |
5¡«100 |
50¡«750 |
1800 |
AC220/50 |
1650 |
1270¡Á1270 |
1700¡Á340 or 50¡Á1650 |
61.5 | | |
|
|
|
|
